FINECUT Safety 33 Model / Safety 31 Model PIN Type

Cutting machine exclusively for die ejector bin cutting.

S54075423

heiwaweb

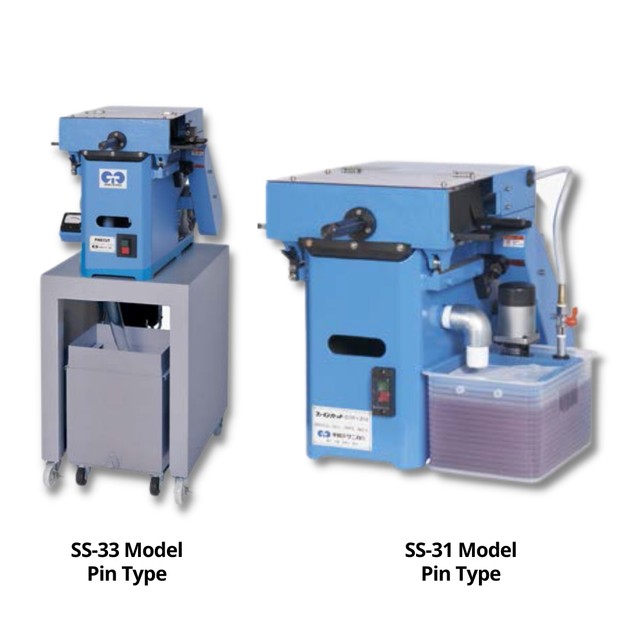

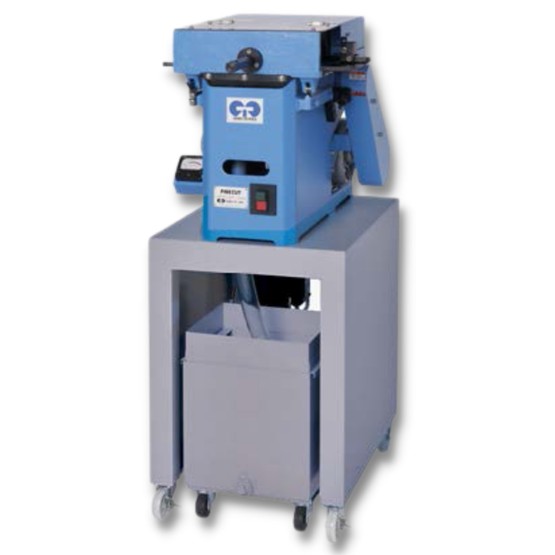

FINECUT Safety 33 Model PIN Type (SS33PIN)

64
Safety 33 Model PIN Type

65

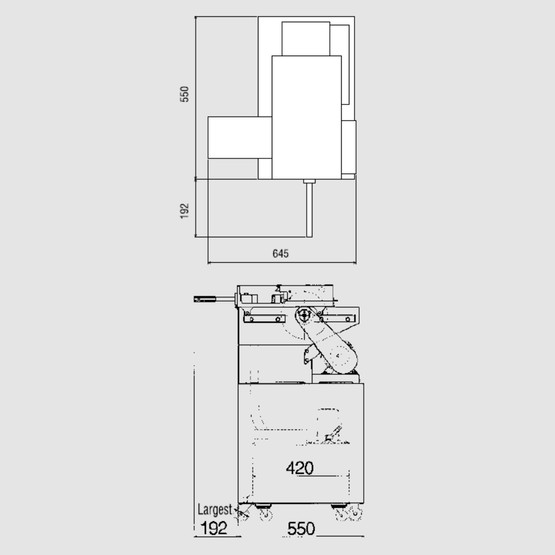

Required floor area

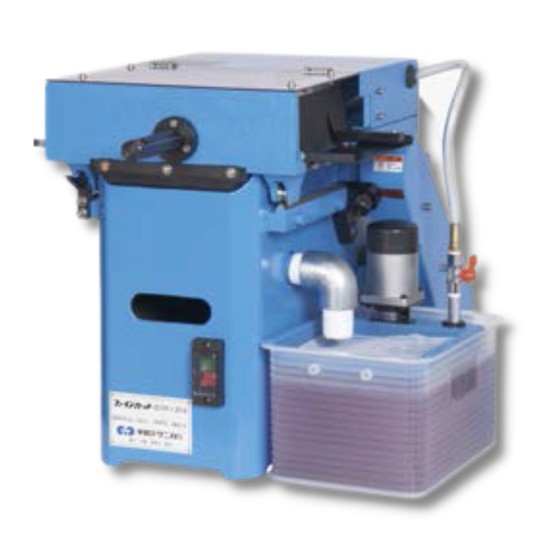

FINECUT Safety 31 Model PIN Type (SS31PIN)

66
Safety 31 Model PIN Type

67

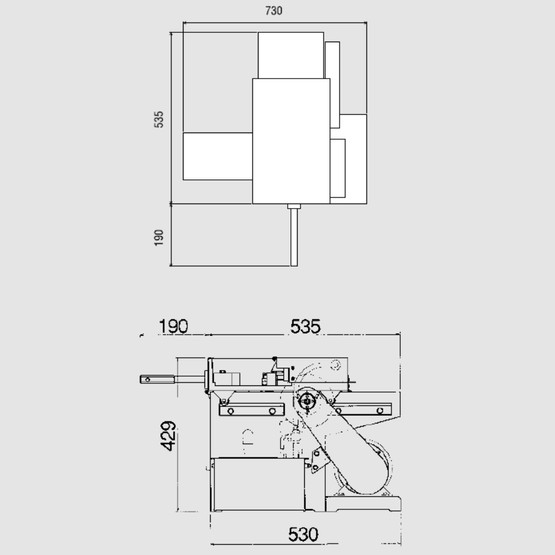

Required floor area

70
Pin Type Vise

Dedicated ejector pin for die cutting. A 300 mm Vernier Scale is equipped as standard on the left side, measurement can be cut to 50 - 300 mm cutting dimensions.

*Vernier Scale 500 mm (special specification)

71

Cutting Wheel Exchange Space

There is space on the table in order to exchange the cutting wheel. Safely and quickly exchange the cutting wheel without having to lift the table.

72
Main Shaft Stopper for Cutting Wheel Exchange

Installed in front of the belt cover on the right side of the main unit. When exchanging the cutting wheel you can lock the main shaft without using a special tool.

73
Vernier Scale

Fine adjustment of the material protrusion position is easy to do.

*For the Pin Type, 300 mm is the standard equipment (special specifications: 500 mm)

The standard specifications of Safety 33 Model, Safety 31 Model Pin Type are the same as the Safety 33 Model, 31 Model General Type.

68

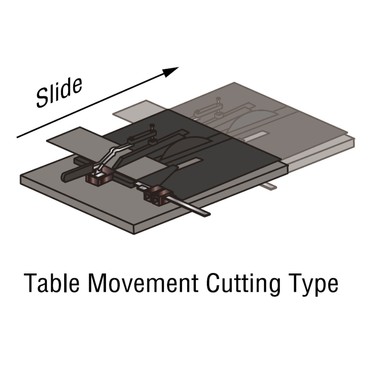

Cutting Method

(Common Specification)

69

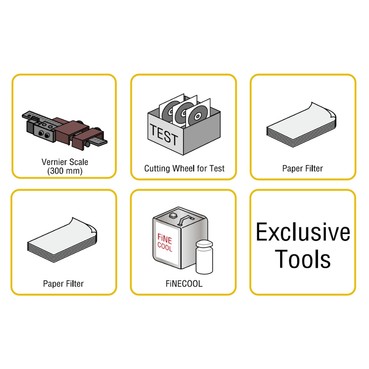

Standard Specification/Included Items

(Common Specification)

heiwaweb(1)

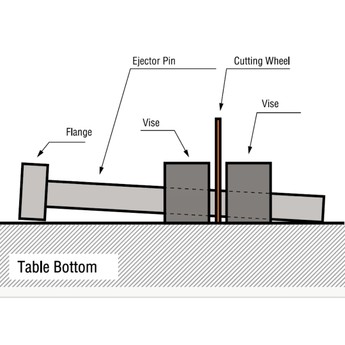

Ejector Pin

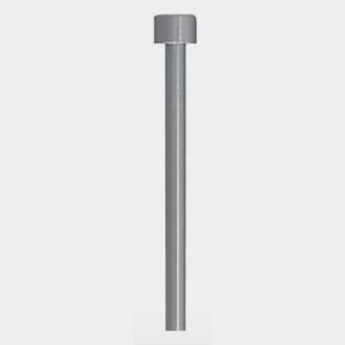

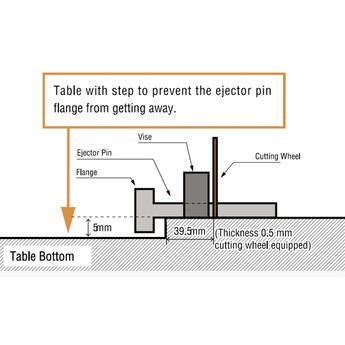

Refers to a metallic shaft that plays a role of removing a molded product from a mold, when making a product with a mold (plastic mold, press mold, die casting, etc.). The pin exclusive type has a step on the structure of the bottom of the table, and it is possible to clamp the ejector pin flat.
74
General Type Table

75
Pin Type Table
