Details

• Product Name : SMS09 Series
• Material : PET
• Adhesive : Acrylic
• Size : 8mm,12mm,16mm,24mm
• Color : yellow,black
• Peeling-off Force : (N/25mm) By Angle Of 180 Degree≥15

Description

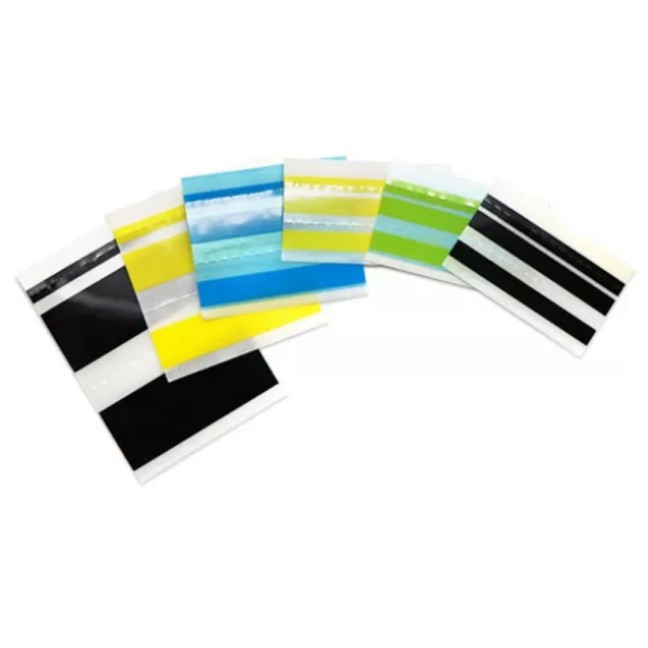

09 series Special SMT splice tape with three tapes and guide alignment designed all specifications (8/12mm/16mm/24mm/32/44/56/72/88mm)of carrier tape

09 series splice tape is used for jointing carrier tapes in the SMT process. It is made of three pcs tapes, release paper and removable PET with superior adhesion.

Features And Benefits

1. Three tapes and guide alignment designed for stronger jointing.

2. It's suitable for Univeral, Juki, Sanyo, Hitachi machines.

Application

Used for jointing carrier tapes in the SMT process and Solving the connection problem of the carrier tape.
