HEIWA TECHNICA

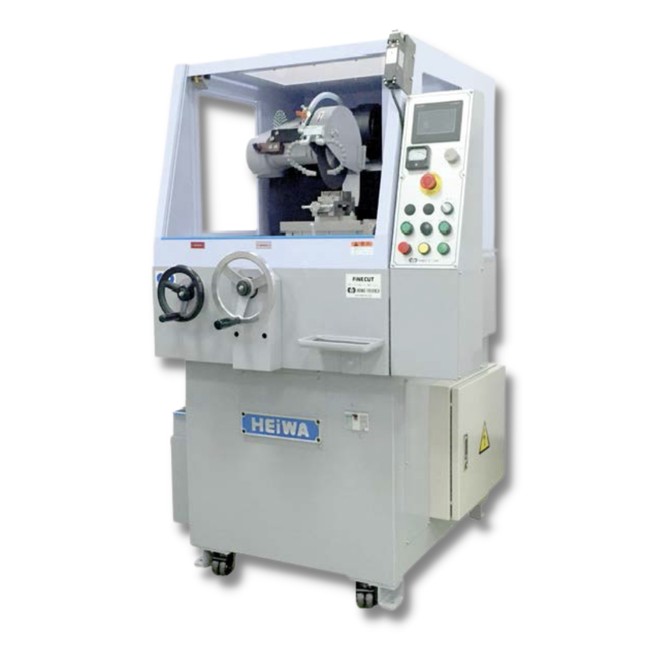

FINECUT HS-100G2 MODEL

The installation of a touch panel that clarifies the status improves the affinity with operators!
1

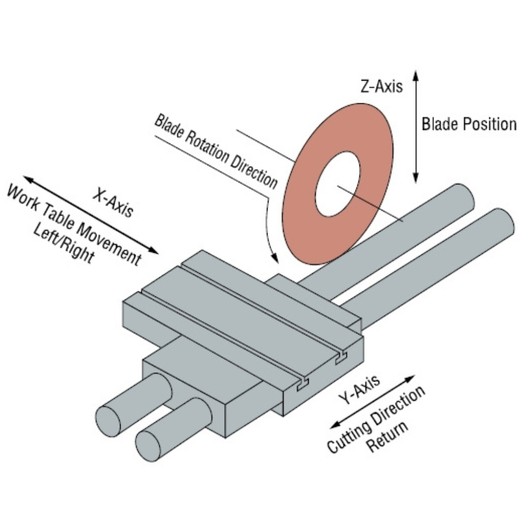

XYZ Composition

1
The work table can be moved left/right (X-axis) and forwards/backwards in the cross-cutting direction (Y-axis). Also, the blade cutting height (Z-axis) can be optionally adjusted using the round handle on the left front side of the machine, making for a mechanism that can cut up and down the main shaft.

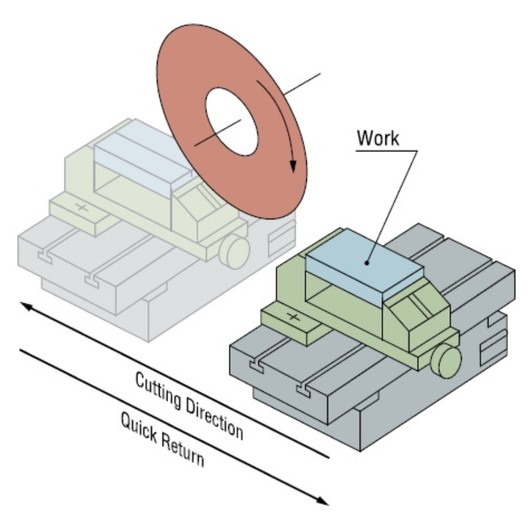

Automatic Cutting - Quick Return Style

2

The cutting position is set with the touch panel, and after the settings have been made the cutting is done automatically. The cutting speed can be set controlled from 4-300 mm/min, according to the conditions such as the material, product shape, and accuracy. Once the cutting stroke is positioned by the one-touch button operation, from here the cutting is completed automatically, and the table quickly returns to the cycle stop. Once the settings have been made, the machine will finish cutting without an operator needing to be present.

Touch Panel3

Cutting Method4Horizontal Cutting Method

Cutting Example

5

Required Floor area

6

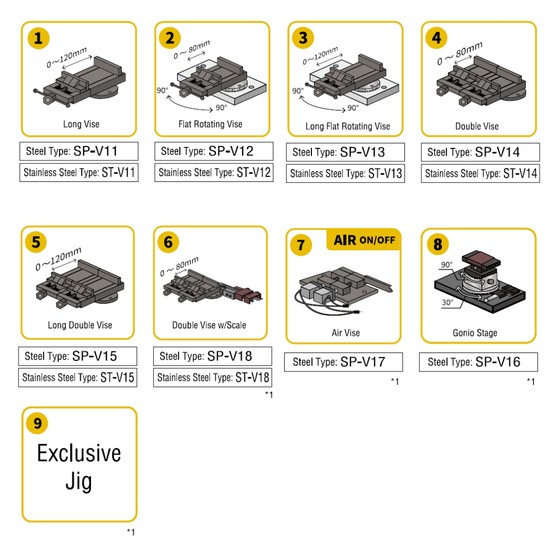

Vise Line-Up

heiwa

*1 Arrangement necessary

Note: Please inquire separately regarding stainless steel spec vise

Note: Please view option pages 16-17 for separate specifications

[[POS2]]

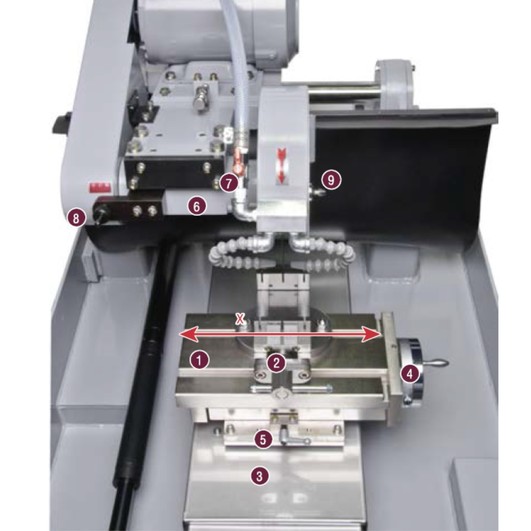

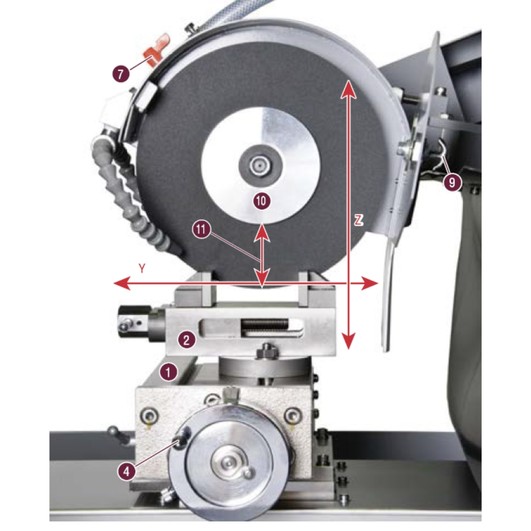

Main Unit Internal Composition
8

9

1.Work Table Part (Electroless nickel plating specification)

2.Standard Stainless Steel Vise (Vise opening 0 - 80 mm) (w/graduation ring and 0.02 mm scale movement)

3.Stainless Steel Front/Back Feed Cover (countermeasure specification for foreign objects)

4.Work Table Side Feed Handle (w/graduation ring)

5.Work Table Stopper Knob

6.Oil-Less Spindle (free maintenance specification)

7.Coolant Discharge Adjustment Tap

8.Main Shaft Stopper for Cutting Wheel Exchange

9.Cutting Wheel Cover Open/Close Knob

10.Cutting Wheel Flange (made from aluminum)

11.Cutting Wheel Effective Use Cost

X Work Table Movement Amount : Left / Right 110 mm manual

Y Cutting Movement Amount : Front/Back 240 mm (during front-right handle operation)

Z Main Shaft Movement Amount : Vertical 125 mm (during front-left handle operation)
