(Loose & Taped)
FT-607A/607B
Spec
Power: 220V /AC 50/60HZ
Size:L610*W500*H700mm
Weight:90-115kg
Speed: 4500-7200pcs/H
Feature

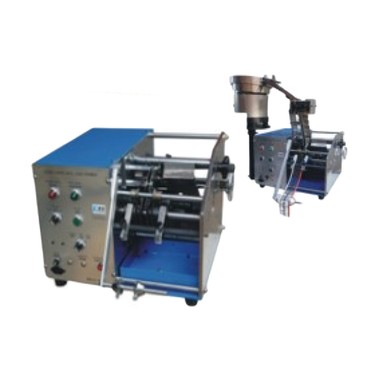

1.Suitable for the taped and loose axial resistor,diode forming and cut.
2.Stable quality and best suitable for mass production.
3.All cutter materials imported from Japan and with long life-span.
4.Machine could do the KINK on the lead, the different shape could be match different die set. All die set are customized.
FT-602
Spec
- Power:220V.50/60HZ
- Size:L320*W300*H520mm
- Weight:37kg
- Speed:7200pcs/H
- Reel automatic feed,form and cut
- Lead length is adjustable
- Operation is simple,lower consumption and cost
- Adopt the special feeding mode without stuck the lead
- Suitable for mass production
- The blade is imported from Japan
FT-604 & FT-604A
Spec
Power:220V / 50/60HZ
Size: L360*W300*H350mm
Weight:35kg
Speed: 3500-4000pcs/H
5000-12000pcs/H(Auto.)
Feature
1.For all radial component lead cut
2.High precision cutting down, Lead length min 3 mm (Less than 3 mm. , need to customize)
3.All cutter materials imported from Japan, longer lift-span.
4.It is the best suitable machine for Mass production.
5.The feeder bow you could move away or install.
6.Application range : A≤10mm. B≤16mm.
Spec
Power:220V / 50/60HZ
Size: L310*W180*H140mm
Weight:15kg
Speed: 2000pcs/H
Feature

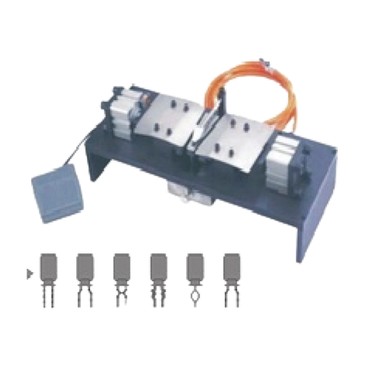

1.For all radial component lead forming and cutting by changing different die set.
2.Small in capacity, simple operation and easy maintenance.
3.All cutter materials imported from Japan, longer life-span.
4.It is the best suitable machine for small quantity forming but in different shape use
5.One set machine could match more 10set die to meet different component and shape. Only cut, for cut and forming.
6.Application range is no limitation. LED, Transistor,capacitor.
7.All size is fixed, with high accuracy in size.
