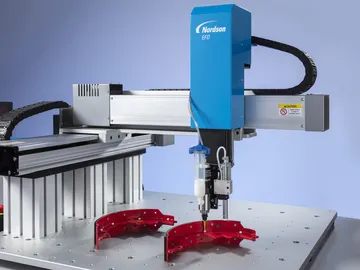

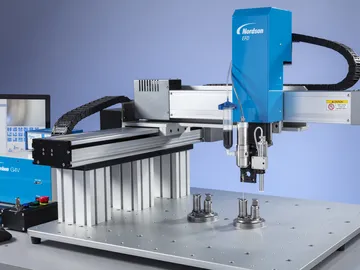

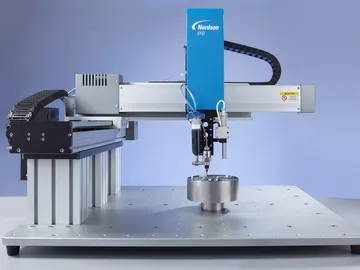

GV Series Automated Fluid Dispensing Robot
The GV Series industrial dispensing gantry robot can work as a standalone system or as a key part of an automated solution and is easily integrated into rotary tables and conveyor-fed assembly lines. Working envelopes range from 400 mm to 800 mm for precise fluid dispensing onto substrates requiring large work envelopes while not sacrificing repeatability.
Overview
The GV Series automated fluid dispensing system features specialized DispenseMotion™ software and an integrated CCD smart vision camera or a simple pencil camera. This makes the automated system quick to set up and easy to program. True three-dimensional motion control allows easy programming of dots, lines, circles, arcs, and compound arcs. Dispense with Confidence Verify fluid deposit placement and accuracy with the OptiSure™ automated optical inspection (AOI) software. The AOI system measures fluid deposit width and diameter, as well as placement accuracy.
Automated Dispensing Systems
Precision Dispensing
Nordson EFD automated dispensing systems offer sophisticated dispensing capabilities, more accurate placement, and greater consistency, while remaining simple and intuitive to program.
Improve Repeatability
Our dispensing robots bring repeatability and precision to your automated dispensing systems and assembly operations. Specially designed, Nordson EFD dispensing robots are compatible with all of our syringe-based and valve-based dispensing systems and are suitable for a wide range of applications, from inline to batch dispensing.
DATA SHEET
z-z199609554311.png)
GV Series
