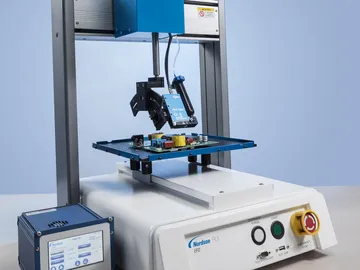

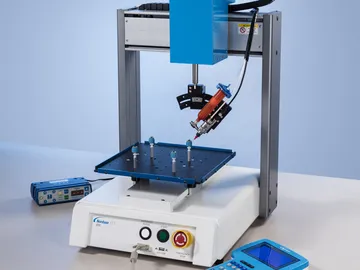

R Series Automated Fluid Dispensing Robot
The R Series automated fluid dispensing system features specialized TeachMotion™ Teach Pendant software for market-leading repeatability and accuracy in fluid placement and positioning.
Overview
Its fourth axis allows for dispensing at any angle along the 360° rotation plane. With custom dispensing software, it’s easy to set up and program the system for dispensing applications in less time. True 3D motion control simplifies programming of dots, lines, circles, arcs, compound arcs, and patterns on different planes. Simultaneous X and Y movement during R rotation makes it necessary to program only the R axis for true point programming. The R Series features best-in-class repeatability at +/- 8 µm for higher throughput yields.
Automated Dispensing Systems
Precision Dispensing
Nordson EFD automated dispensing systems offer sophisticated dispensing capabilities, more accurate placement, and greater consistency, while remaining simple and intuitive to program.
Improve Repeatability
Our dispensing robots bring repeatability and precision to your automated dispensing systems and assembly operations. Specially designed, Nordson EFD dispensing robots are compatible with all of our syringe-based and valve-based dispensing systems and are suitable for a wide range of applications, from inline to batch dispensing.
DATA SHEET
z-z547102843459.png)
R Series
