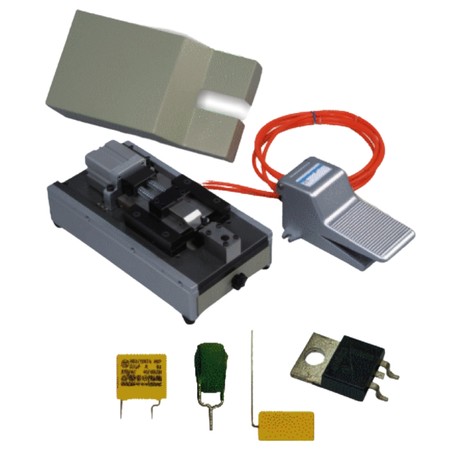

AR-108

Air Drive Lead Forming Machine - Single Cylinder

Dimension : 420(L) x 300(W) x 200(H) mm

Net Weight : 8 kgs

Air Source : 5kgs/cm²

Capacity : Hand-feeding 1 pcs in 3 seconds

• Single one forming direction.
• Capable for the single direction with twin forming action, welcome to provide spec. drawing for consultation.
• Most kinds of components are available, and the die is customized. Different spec. uses different die sets.
• Just a single strike to form and cut at a time. The forming spec. is fixed.
• Small and compact, change dies easily.
• Die is tailor-make upon the forming spec. Need other spec., just buy and change extra die sets.
• Provide a suitable solution upon the forming drawing with spec.

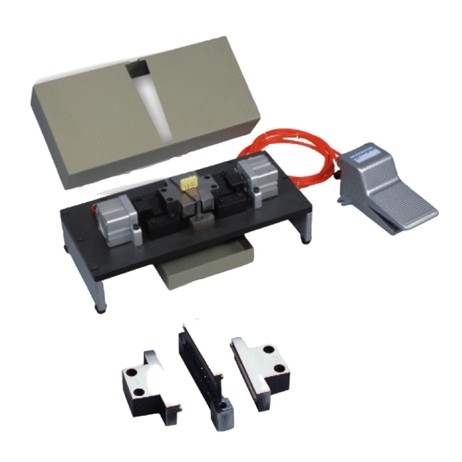

AR-106

Air Drive Lead Forming Machine - Twin Cylinder

Dimension : 420(L) x 300(W) x 200(H) mm

Net Weight : 10 kgs

Air Source : 5 kgs/cm²

Capacity : Hand-feeding 1 pcs in 3 seconds

• Twin cylinders form and cut from both sides.
• Trapezoid die base is available for different pitches, 7-20mm.
• Capable of the double direction with twin forming action, welcome to provide the spec. drawing for consultation.
• Most kinds of components are available, and the die is customized. Different spec. uses different die sets.
• Just a single strike to form and cut at a time. The forming spec. is fixed.
• Small and compact, change dies easily.
• Die is tailor-make upon the forming spec. Need other spec., just buy and change extra die sets. One forming spec. applies to one die set.
• Provide the suitable solution upon the forming drawing with spec

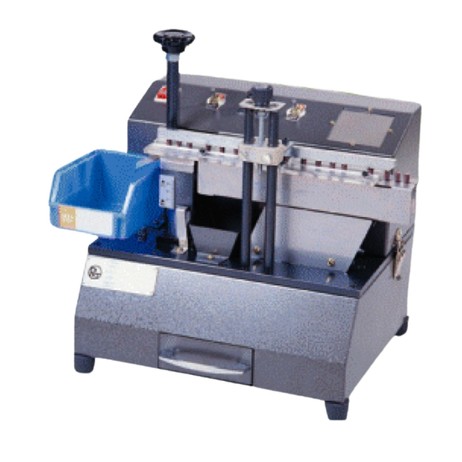

CF-360X

Cutter without Counter

Power : 110V/220V AC 50/60Hz

Dismension : 500(L) x 430(W) x 470(H) mm.

Weight : 24 kgs.

• Easy maintenance and simple operation.
• Upgradable to CF-366, add bowl feeder or worktable.
• Linear Feeding on trail is suitable for most parts.
• Durable cutters from unique cutting method.
• Optical LED Component Counter is optional accessory.

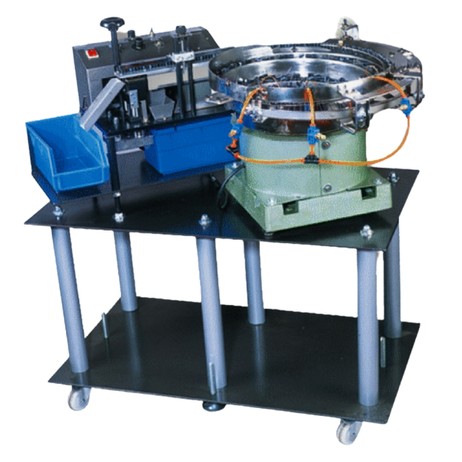

CF-366

Automatic Loose Radial Lead Cutter

Power : 110V/60Hz ;220V/50Hz

Air Source : 4 kgs/cm

Dimension : 1150(L) x 700(W) x 1050(H) mm

Net Weight : 145 kgs

Capability : 18,000pcs/ Hour

• Shorten leads in the massive production to save the labor cost.
• If the leads were cut, the bowl feeder cannot run them because they fall down easily. Recommend to use AR-110 to cut shortened leads shorter.
• Lead Cutter can work independently from or together with the bowl feeder and supporting table. Hand Feeding is available when removing the bowl feeder.
• LED component Counter is available, please indicate on the order. The Lead Cutter Model No. with counter is CF-360.

RT-80

Hand-crank Taped Axial Lead Bender

Dimension : 380(L) x 180(W) x 210(H) mm

NetWeight : 8kgs

Capacity : Taped 50,000 pcs/Hour

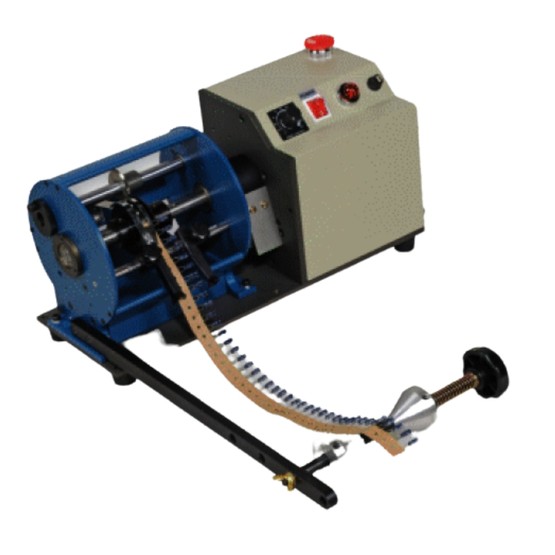

RT-82

Motorized Taped Axial Lead Bender

Power : 110V/60Hz;220V/50Hz

Dimension : 470(L) x 180(W)x 235(H) mm

Net Weight : 15 kgs

Capacity : Taped 60,000 pcs/Hour

RT-79

Taped Radial Lead Cutter by hand crank

Dimension : 380(L)x 180(W)x 210(H) mm

Net Weight : 6 kgs

Capacity : 25,000pcs/Hour

RT-70

Motorized Taped Radial Lead Trimmer

Power : 110V/60Hz ;220V/50Hz

Dimension : 520(L)x 380(W)x300(H) mm

Net Weight : 16 kgs

Capacity : 25,000pcs/Hour

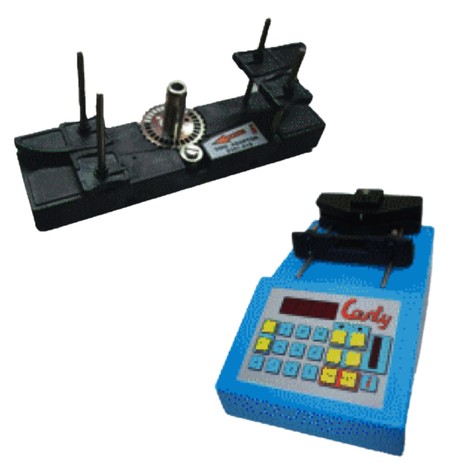

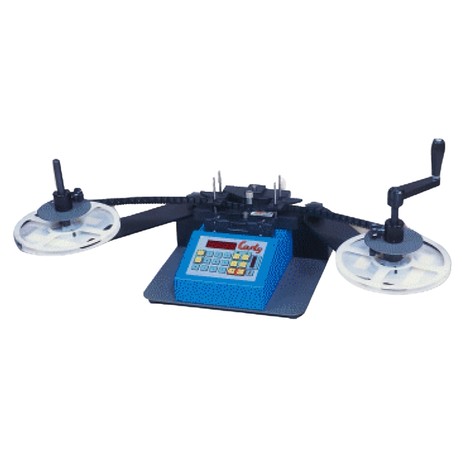

M-831

Great for DIP and SMD parts, inventory check's best partner.

Power : 110V/60Hz;220V/50Hz

Dimension : 350(L)x300(W)x 280(H) mm

Net Weight : 6kgs

Min.leads diameter : 0.35mm

• Different adaptors are equipped for DIP or SMD parts.
• Count in both directions (Leftward or rightward).
• Divider from 1 to 10 (up to 19 upon request.)
• Accumulating mode is available.
• Count to and stop at the pre-set amount is one of the modes. (with an audible signal when the desired component number is reached).
• Automatic Calibration and self-diagnostic procedure
• Remember the last condition and amount.
• Input of the external detector is extendable.
• Output for external motor control.
