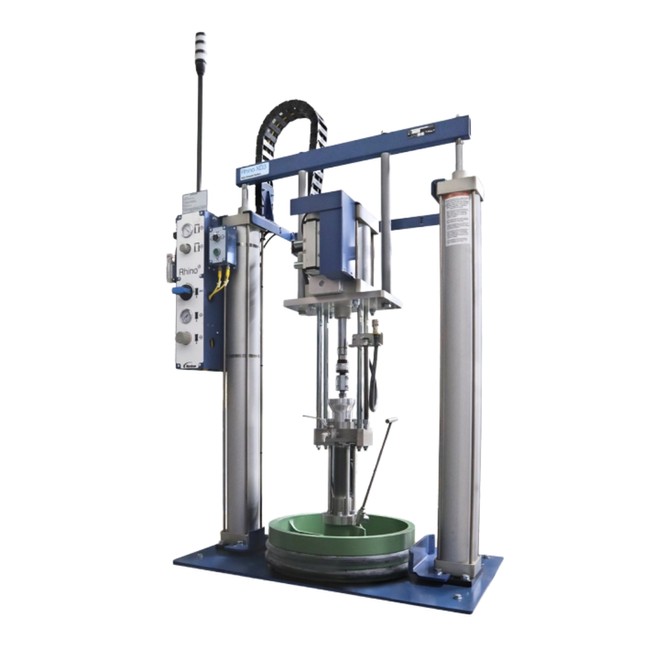

Rhino SD3 XD3 Bulk Unloaders
Rhino SD3/XD3 Bulk Unloaders boast industry-leading features and benefits that provide production flexibility and reduce material waste and operational cost.
![111]](https://itp1.itopfile.com/ImageServer/a676b53ba8a48c67/360/0/111]z-z633962470053.webp)
Overview
Rhino SD3/XD3 Bulk Unloaders provide medium to thick material unloading for general industry applications via easy-to-operate pneumatic controls. The full line of bulk unloaders includes a single-post 5-gallon configuration, 5- and 55-gallon configurations, stainless or carbon steel and ambient temperature or temperature-controlled systems.
Long-Lasting Durability
Reduced downtime and maintenance through rugged design and the highest build quality that maximize production efficiency.
Operator Simplicity
Simple and intuitive front-facing operator interface features system connectivity in either Profinet or Ethernet IP, providing flexibility to meet customer specifications.
Features Bring Efficiency
Simplified controller interface, advanced light tower indication, extended air motor life, optimized hydraulic section and robust packing glands are just some of the features providing optimum efficiency.
Reduced Material Waste Brings Cost Savings
Ultra low-waste follower plate reduces material waste by over 65%, providing extreme cost savings.
Rhino® SD3/XD3 Electric Bulk Unloaders
Industry-leading features provide production flexibility and reduce material waste and operational costs.
Rhino SD3/XD3 Electric Bulk Unloaders provide medium to thick material unloading via easy-to-operate electric controls. The full line of bulk unloaders includes 5- and 55-gallon dual-post configurations, stainless or carbon steel and ambient temperature or temperature-controlled systems.
Technical Specifications
Volume per cycle: 190 cc / 6.42 fl oz.
Maximum output: 2.85 L/min. / 0.75 gal/min.
Maximum cycle rate: Intermittent: 1 cycle per 4 sec. / Continuous: 1 cycle per 8 sec.
Dynamic viscosity range: 30,000 - 4,000,000 cps
Industry-Leading Features & Benefits
Enhanced Cable Protection
55-gallon configurations are fitted with a cable track to provide protection from harsh manufacturing environments
Elimination of Operator Error
Optional material barcode reader scans material containers to ensure a match between the application and desired material, providing production reliability, cost savings associated with rework, quality assurance and audit trails.
Simplified Control Interface
Ram and pump controls are strategically grouped together and easy to access through removable covers, making the interface easy to operate and repair.
Durable Hydraulic Section
With no internal seals, simple-toremove packing cartridges and easy access to the solvent port, the hydraulic section design provides easy maintenance.
Simple Container Change
Integrated blow-off control prevents vacuum generation when removing the follower from an empty container.
Extreme Air Motor Life
Rated to 8,000,000 cycles, the high-efficiency air motor is designed for the most demanding work cells and provides consistent pressure, cycle after cycle.
Industry-Leading Standard Options
Comprehensive range of standard options are included on every unit, such as runaway detection and prevention to prevent premature unloader failure as well as light towers for visual factory floor alerts
Readily Available Upgrades
From bar code scanners that prevent the use of incorrect materials, to conveyors for easy container transitions, strategically designed options are available for when your production increases.
Rhino® SD3/XD3 Pneumatic Bulk Unloaders
Industry-leading features provide production flexibility and reduce material waste and operational costs.
Rhino SD3/XD3 Pneumatic Bulk Unloaders provide medium to thick material unloading for general industry applications via easy-to-operate pneumatic controls. The full line of bulk unloaders includes a single-post 5-gallon configuration, 5- and 55-gallon configurations, stainless or carbon steel and ambient temperature or temperature-controlled systems.
Technical Specifications
Volume per cycle: 190 cc / 6.42 fl oz.
Maximum output: 2.85 L/min. / 0.75 gal/min.
Maximum cycle rate: Intermittent: 1 cycle per 4 sec. / Continuous: 1 cycle per 8 sec.
Dynamic viscosity range: 30,000 - 4,000,000 cps
Industry-Leading Features & Benefits
Enhanced Cable Protection
55-gallon configurations are fitted with a cable track to provide protection from harsh manufacturing environments.
Elimination of Operator Error
Optional material barcode reader scans material containers to ensure a match between the application and desired material, providing production reliability, cost savings associated with rework, quality assurance and audit trails.
Modular Design
A range of interchangable air motors and follower plates enable simple system configuration.
Dispensing Consistency
Fast air motor changeover, rapid cycling and a dual airpiloted cylinder provide uniform material output and consistent material pressure.
Operator Simplification
Simple and intuitive frontfacing pneumatic controls feature automatic shutdown functionality that prevents damage to the unit when the follower reaches the bottom of the container.
Safety Compliance
Tapered solvent cup ensures a fingersafe design and CE compliance.
Durable Hydraulic Section
With the elimination of internal seals, simple-toremove packing cartridge and easy access to the solvent port, the hydraulic section desicn provides easy maintenance.
Reduce Downtime
Optional automatic changeover feature minimizes downtime by allowing continuous production during material container changes.
