Magnification

Objective Lenses

Eyepieces

Optical Body

Working Distance

Interpupillary Distance

Diopter Adjustment

Stand (Height)

Incident Illumination

Transmitted Light

Stage plate

Base Size

Overall Height

Net Weight

Accessories

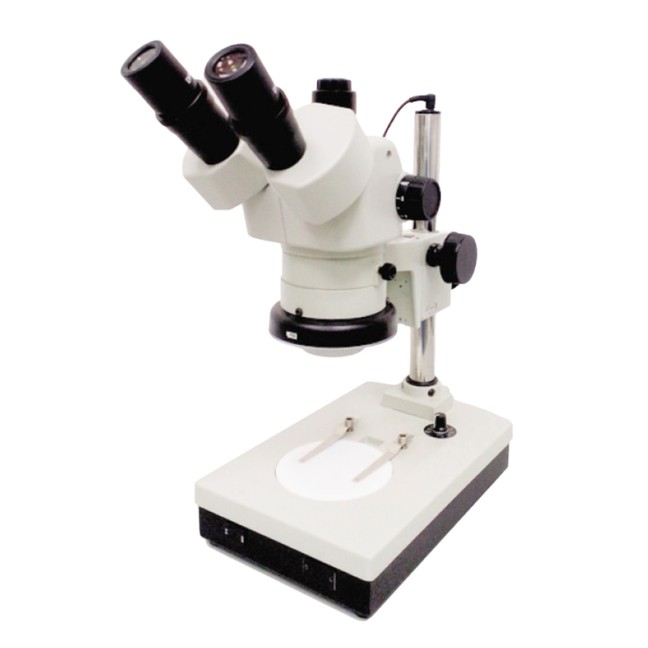

SPZT-50JPITF-LED / SPZV-50JPITF-LED

6.7x to 50x (field of view : 34.3 mm to 4.6 mm)

0.67xto 5.0x (zoom ratio : 7.5:1)

Wide Field 10x (DHW10x), Field Number 23

360 degrees rotatable trinocular type, 45 degrees inclined eyepiece tubes, vertical C mount tube,

108 mm

52 mm to 75 mm

+/- 7.2D on both eyepiece tubes

Pole type (300 mm)

Built-in LED ring light with intensity control

Fluorescent Lamp 5W

Round plastic stage (Ø=80 mm)

180 mm x 265 mm

328 mm

5.6 kg

Rubber eyeguards, Tension control pin, Dust cover
