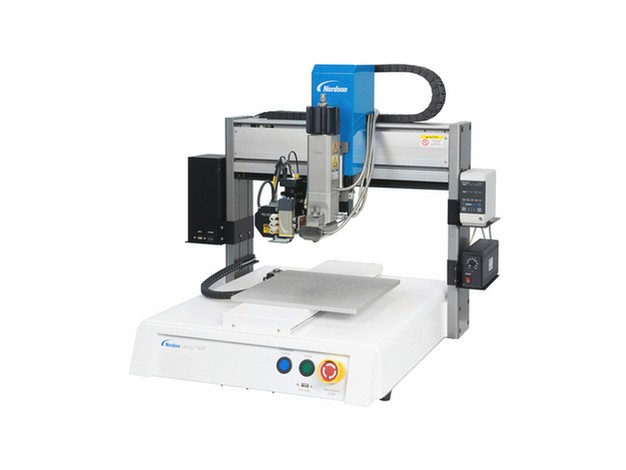

Unity™ 4axis Automated Dispensing Systems
The Unity 4axis robots offer a specialized rotation table, which provides a more stable and accurate dispensing in precise hot melt applications than traditional 4axis robots.
Overview
The Specialized UNITYMotion™ software and integrated vision capabilities make the Unity 4axis systems easy to set up and program. Simultaneous X and Y movement during U rotation provides a precise point of programming for dispensing at any angle along the 360° rotation plane.
Features
UNITYMotion icon-based software simplifies setup and programming with advanced vision features
On-screen preview of the dispensing path, which facilitates programming
A specified and reinforced U axis with 360° rotation for accurate dispensing
Simultaneous X and Y movement during U (rotation) for truepoint programming
A specified bracket can fix the applicator to an angle at -5° to 45°
Benefits
Market-leading dimensional positioning accuracy and deposit placement repeatability
Faster cycle and batch times
Easier to set up and program quickly
Seamless integration into any manufacturing operation
Reduced production, material, and ownership costs
